Main Features
Real 6½ digits readings resolution (2,200,000 counts)
Up to 50k rdgs/s of measurement speed
512 MB RAM, capable of saving up to 2M readings for caching
Equipped with EasyDMM-X host computer control and sampling software
5-inch true color TFT-LCD display

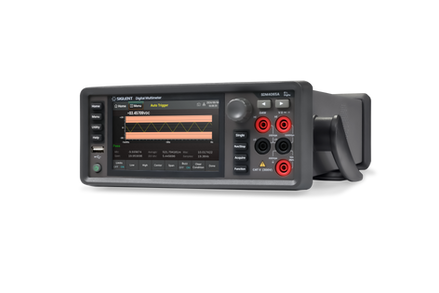

SDM4065A is a 6 ½ digits digital multimeter, with outstanding measurement accuracy and touchable screen, is a product designed for high-precision, multifunctional, and automatic measurement needs.
Specifications
DC Voltage | 200 mV ，2 V，20 V，200 V，1000 V |
DC Current | 200 μA，2 mA，20 mA，200 mA，2 A，10 A |
AC Voltage | True-RMS，200 mV，2 V，20 V，200 V，750 V |
AC Current | True-RMS，200 μA，2 mA，20 mA，200 mA，2 A，10 A |
2/4-Wire Resistance | 200 Ω，2 KΩ，20 KΩ，200 KΩ，1 MΩ，10 MΩ，100 MΩ |
Capacitance | 2 nF，20 nF，200 nF，2 μF，20 μF，200 μF，2 mF，20 mF，100 mF |
Continuity Test | Range is fxed at 2 kΩ |
Diode Test | Adjustable range is 0 - 4 V |
Frequency Measurement | 3 Hz~1 MHz |
Temperature | Support for TC and RTD sensor |
Math Function | Max, Min, Average, Standard Deviation,dBm/dB, Relative Measurement ,Pass/Fail Histogram, Trend Chart, Bar Meter, etc. |
Dispay | 5-inch TFT-LCD display, 800 * 480 |
Reading Resolution | Real 6½ digits readings resolution (2,200,000 counts) |
Size | 256 MB Nand Flash |
Standard Interface | USB Device, USB Host, LAN |
Optional Interface | USB-GPIB Adapter and Scanner Card SC1016 |
Scanner Card SC1016 | Only for SDM4065A-SC |
Model | Reading resolution | AC voltage measurement range | DC voltage measurement range | DC current measurement range | AC current | Scanner card |
|---|---|---|---|---|---|---|
SDM4065A | 6 1/2 | 200 mV ~ 750 V | 200 mV ~ 1000 V | 200 μA ~ 10 A | 200 μA ~ 10 A | Not Support |
SDM4065A-SC | 6 1/2 | 200 mV ~ 750 V | 200 mV ~ 1000 V | 200 μA ~ 10 A | 200 μA ~ 10 A | Support |
