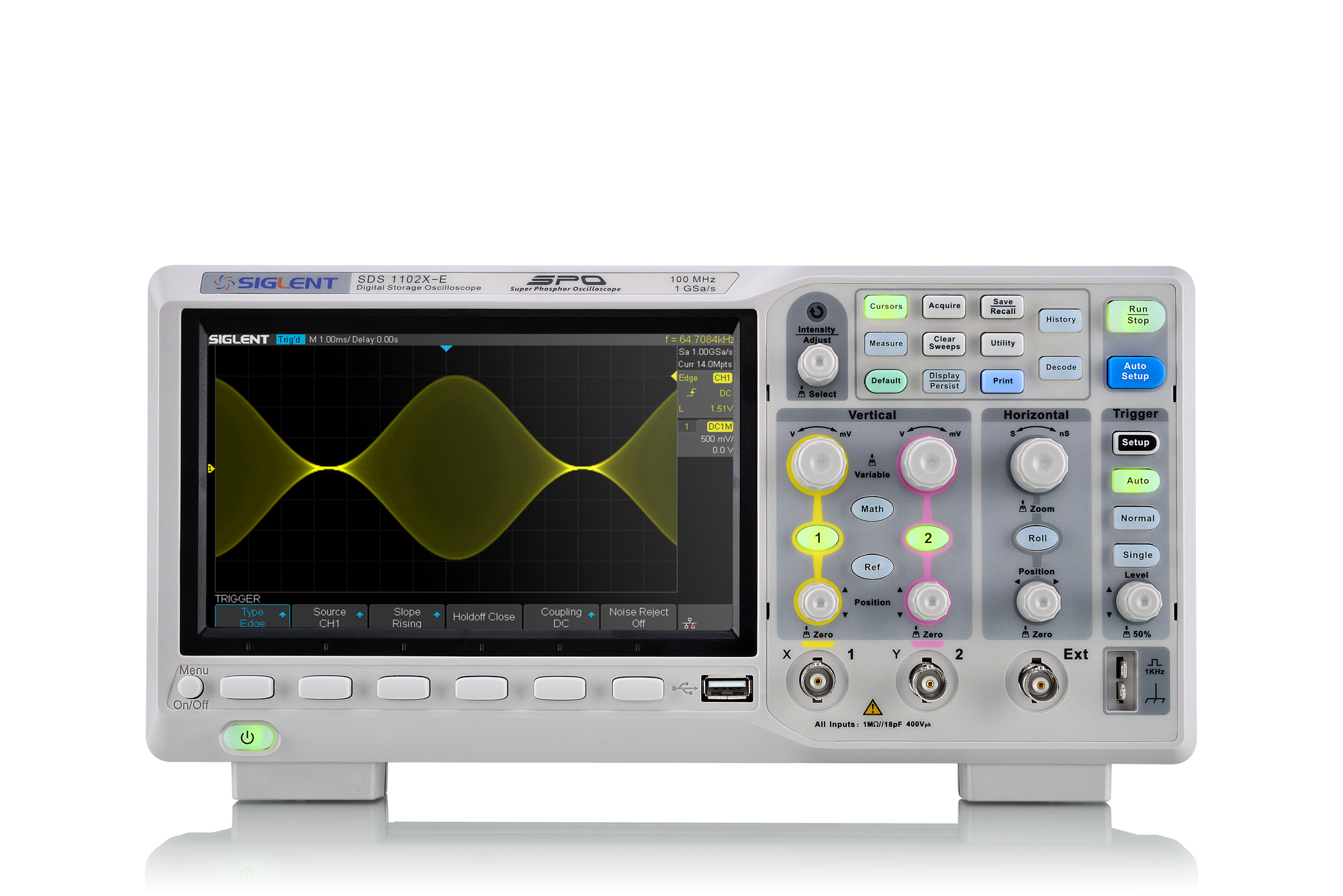

SDS1000X-E - Digital Storage Oscilloscope
| Bandwidth | 100 MHz 、200 MHz |
| Sample Rate(Max.) | 1 GSa/s |
| Waveform capture rate(Max.) | 400,000 wfm/s |
| Channels | 4 (four channel series) 2+EXT (two channel series) |
| Memory Depth (Max.) | 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode) |
| Trigger type | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video |
| Serial trigger and decoder(Standard) | I2C, SPI, UART, CAN, LIN |
| 16 Digital channel (four channel series only) | Maximum waveform capture rate up to 1 GSa/s, Record length up to 14 Mpts/CH |
| USB AWG module (four channel series only, option) | One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts |
| Bode plot ( four channel series only) | Minimum start frequency of 10 Hz, minimum scan bandwith of 500 Hz, maximum scan bandwidth of 120 MHz (dependent on Oscilloscope and AWG bandwidth), 500 maximum scan frequency points |
| I/O | USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus(Siglent MSO) |
| Probe (standard) | SDS1104X-E: 4 pcs passive probe PP510; SDS1204X-E/SDS1202X-E：4/2 pcs passive probe PP215 |
| Display | 7 inch TFT–LCD (800 x 480 pixels) |
| Weight | Four channel series: Without package 2.6 kg; With package 3.8 kg; Two channel series: Without package 2.5 kg; With package 3.5 kg |
