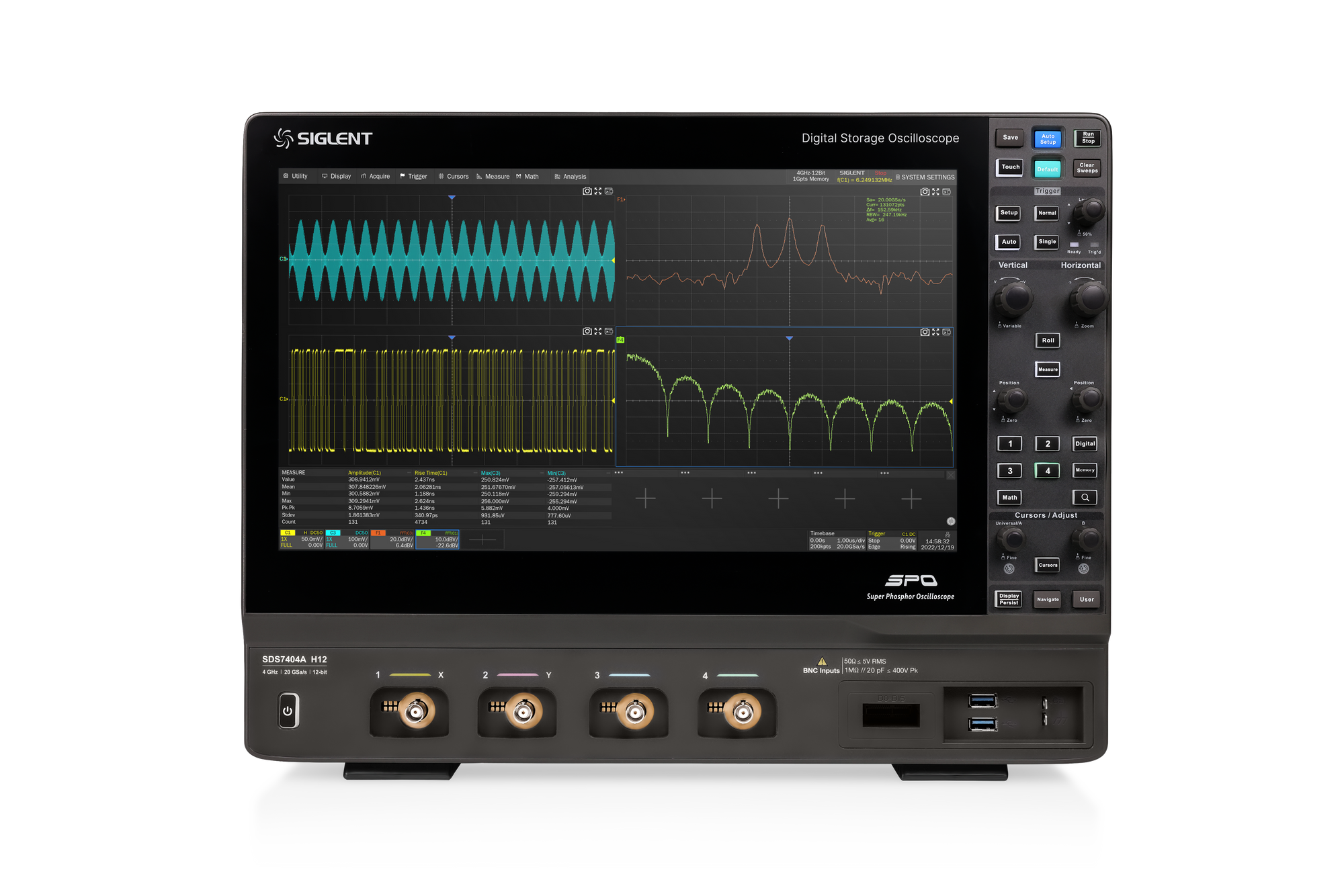

SDS7000A - Digital Storage Oscilloscope

  • Bandwidth up to 8 GHz, 12-bit ADC resolution
  • Real-time sampling rate up to 20 GSa/s
  • Record Length up to 2 Gpts/ch
  • Waveform capture rate up to 1,000,000 wfm/s
  • RTSA, SigVSA, Eye diagram, Jitter analysis, Compliance Test, Power analysis, Bode plot, MSO, AWG
  • SAP5000D, 5 GHz High-speed differential probe
Bandwidth 3、4 、6、8 GHz
Sample Rate(Max.)

A Models：20 GSa/s (dual-channel) 10 GSa/s (3 or 4 channels)


AP Models：20 GSa/s @ all channels
Waveform capture rate(Max.) 1,000,000 wfm/s
Analog channels 4 + EXT
Trigger type Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial
Serial trigger and decode Standard: I2C, SPI, UART, CAN, LIN
Optional: CAN FD, CAN XL(decode only), FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429, USB 2.0 (decode only)
Data analysis Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis, Eye/Jitter Analysis, SignalScan, Compliance Test (USB 2.0, 100Base-TX, 1000Base-T, 2.5G/5G/10GBase-T, 100Base-T1, 1000Base-T1, MIPI-DPHY), Spectrum Analyzer mode (RTSA/DDC/Sigal analysis, for A models only)
Digital channel  16-channel; maximum sample rate up to 1 GSa/s;
record length up to 50 Mpts
Waveform generator (optional) Builit-in, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory
I/O 4x USB Host 3.1 Gen 1，2x USB 3.0 Host，USB 2.0 Device (USBTMC)，2x 1000M LAN (VXI-11+SCPI， Telnet (5024)+SCPI，Socket (5025)+SCPI，LXI，WebServer)
Display: 1x DVI-D: up to 1920x1200 @ 60Hz; 1x DP 1.2: up to 4096x2304 @ 60Hz; 1x HDMI 1.4: up to 4096x2160 @ 60Hz
Audio: Mic input, Audio Output
Others: External Trigger In, Aux Out (TRIG OUT，PASS/FAIL)，10 MHz In，10 MHz Out
Probe (standard) 500 MHz, 1 probe supplied for each channel
Display  15.6” HD TFT-LCD with capacitive touch screen (1920*1080）
