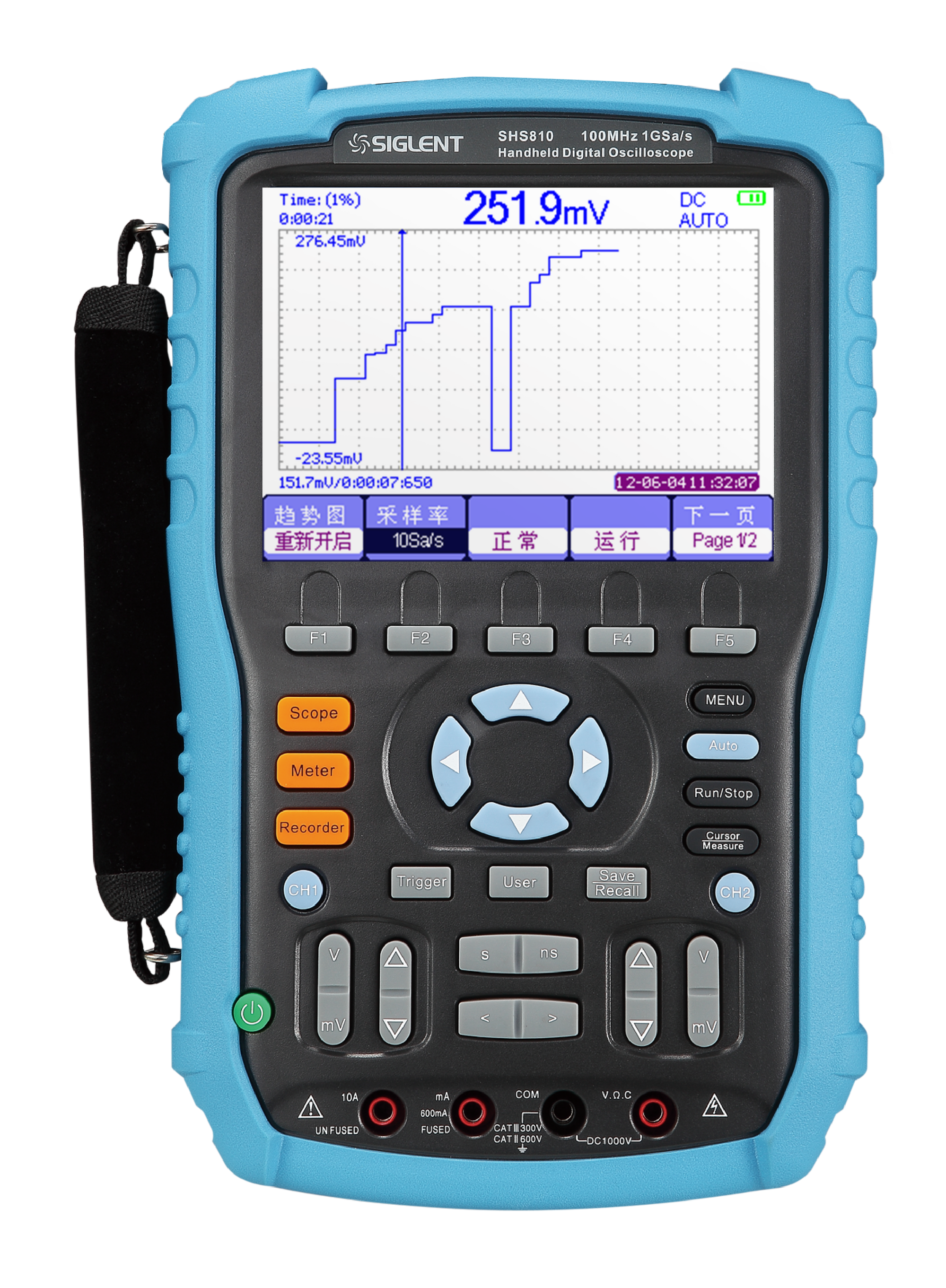

SHS800X - Handheld Oscilloscope
| SHS810X | SHS820X | |||
| Bandwidth | 100 MHz | 200 MHz | ||
| Sample rate (Max.) | Two-channel share a single 1 GSa/s ADC. When two channels are enabled, each channel has a maximum sample rate of 500 MSa/s. When a single channel is active, that channel has a sample rate of 1 GSa/s | |||
| Channels | 2 analog oscilloscope channels, 1 multimeter channel | |||
| Memory depth (Max.) | 6 Mpts/CH (dual-channel mode),12 Mpts/CH (single channel mode) | |||
| Waveform capture rate (Max.) | 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode) | |||
| Trigger type | Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video | |||
| Serial Trigger and decoder | IIC, SPI, UART, CAN, LIN | |||
|
Data Logger(Recorder) |
Sample Logger. The Max sample rate is 25 kSa/s, the Min sample rate is 1 Sa/s | |||
| Measurement Logger. The Max interval is 10 minutes, the Min interval is 0.1second. The Max items of logging is 4 | ||||
| I/O | USB Host, USB Device | |||
|
Max input Voltage (Scope) |
CAT II 300 Vrms Between BNC Signal and Protecting Earth CAT II 30 Vrms Between BNC GND and Protecting Earth CAT II 300 Vrms Between BNC Signal and BNC GND | |||
| Max input Voltage (Meter) | CAT III 300 Vrms, CAT II 600 Vrms | |||
| Probe | PP510 |
PP215 |
||
| Maximum Resolution | 6000 | |
| DC Voltage | 60 mV 600 mV-600 V |
±1%±15 digit ±1%±5 digit |
| AC Voltage(45 Hz～400 Hz) | 60 mV-750 V | ±1.5%±15 digit |
| DC Current | 60 mA-600 mA 6 A-10 A |
±1.5%±5 digit ±2%±5 digit |
| AC Current (45 Hz～400 Hz) | 60 mA 600 mA 6 A-10 A |
±1.5%±5 digit ±2%±5 digit ±3%±5 digit |
| Capacitance | 40 nF 400 nF-400 μF |
±3%±10 digit ±4%±5 digit) |
| Resistance | 600 Ω-6 MΩ 60 MΩ |
±1%±5 digit ±3%±5 digit |
| Continuity | Continuous beep when resistance < 50 Ω | |
| Diode | 0～2 V | |
| Display | 5.6-inch TFT-LCD (640x480) |
| Power Supply | Rechargeable 6900 mA high-capacity lithium battery |
| Weight | Without package 1.75 kg. With package 3.5 kg |
| Domesion | 276 mm * 168 mm * 68 mm |
| Accessories | Two Passive Probes,Multimeter pen,USB data cable,DC adapter,Power cord |
