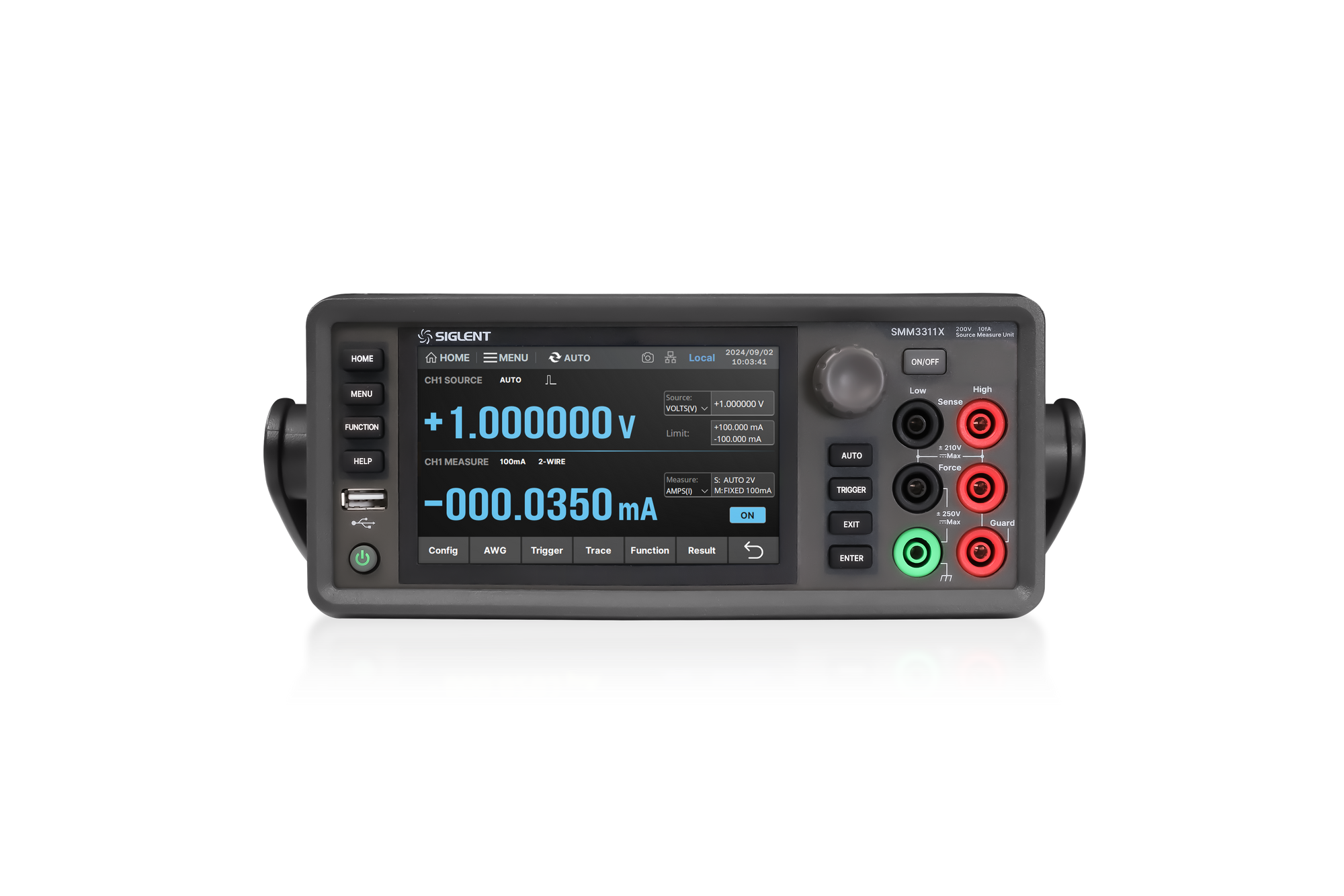

SMM3000X - Source Measure Units

  • 6½ Display digits (2,100,000 count)
  • Maximum acquisition rate of 100,000 points/s
  • Minimum programming and measuring resolution of 10fA/100nV
  • 210V/3.03A(DC)/10.5A(pulsed) maximum output
  • Support DC, pulse, scanning and list output, with a minimum pulse width of 50μs
  • 5-inch touch screen, supporting graphic and digital views.
Max single output current ±3.03A
Max single output voltage ±210V
Max. output power 31.8W
Channels 1，2
Resolution 10fA/100nV
Reading Resolution 6½
Max. output +210V/3.03A/31.8W
Sampling rate 100,000 points/s
Pulsed ±10.5 A，the minimum programmable pulse width is 50 μs.
Display 5-inch TFT-LCD display, 800 * 480
Interface USB Device (optional USB-GPIB adapter), USB Host, LAN


SMM3000X - Source Measure Units
HK$36,348.00 HKD
Add-ons
Add-ons subtotal HK$0.00 HKD
Grand total HK$36,348.00 HKD
