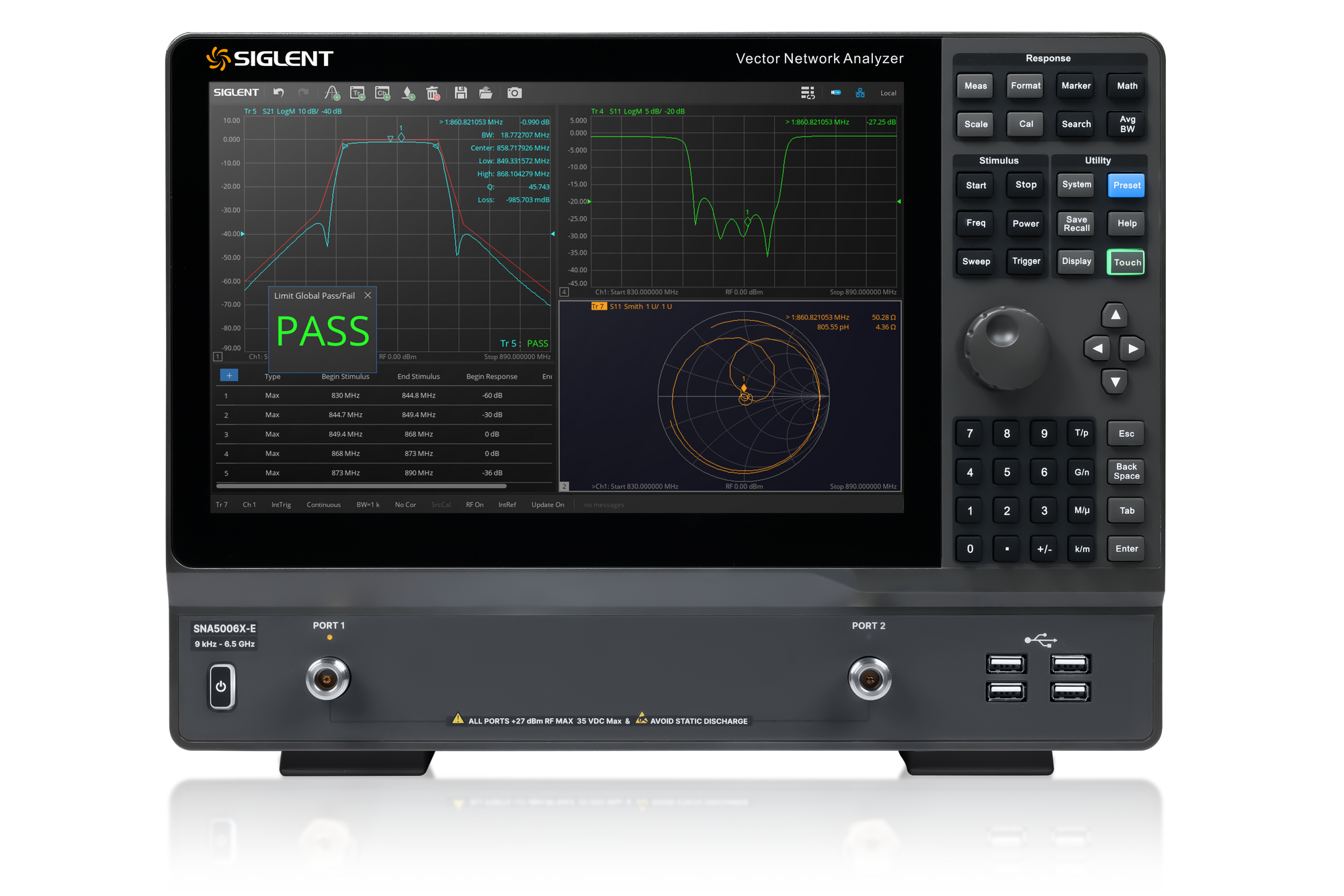

SNA5000X-E - Vector Network Analyzer

  • Frequency range: 9 kHz to 6.5 GHz
  • Range of IFBW: 1 Hz to 10 MHz
  • Dynamic range: 125 dB (typ.)
  • Setting range of output level: -40 dBm to +10 dBm
  • OCXO and standard Bias-Tee
  • 2 ports: Spectrum Analysis, Time Domain, Enhanced Time Domain
  • Compact chassis (12.6 cm depth) and lightweight (<5.4 kg)
Frequency range 9kHz-6.5GHz
Frequency resolution 1Hz
Level resolution 0.05dB
Range of IFBW 1Hz~10MHz
Setting range of output level -40dBm ~ +10dBm
Dynamic range 117dB
Types of calibration Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, TRL calibration
Support Bias-Tees           Yes
Interface LAN，USB Device，USB Host(USB-GPIB)
Remote control SCPI/ Labview/ IVI based on USB-TMC / VXI-11 / Socket /Telnet / WebServer
Screen 12.1-inch touch screen
Video output HDMI
Types of measurement Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis


SNA5000X-E - Vector Network Analyzer
HK$35,724.00 HKD
Add-ons
SNA5000-HPR High Performance Reference Source
HK$9,352.00 HKD
0
HK$0.00 HKD
SNA5000-TDA Time Domain Analysis (SW)
HK$8,182.00 HKD
0
HK$0.00 HKD
SNA5000-TDR Enhanced Time-Domain analysis(SW) (Buy TDR will get TDA for free)
HK$44,062.00 HKD
0
HK$0.00 HKD
SNA5000-SA Spectrum analysis (SW)
HK$11,310.00 HKD
0
HK$0.00 HKD
Add-ons subtotal HK$0.00 HKD
Grand total HK$35,724.00 HKD
