Main Features
Real 5½ digits readings resolution ( 240, 000 counts )
Up to 150 rdgs/s measurement speed
True-RMS AC Voltage and AC Current measuring
1 Gb Nand flash size, Mass storage configuration files and data files
Optional Scanner for multipoint measurements (-SC part number)

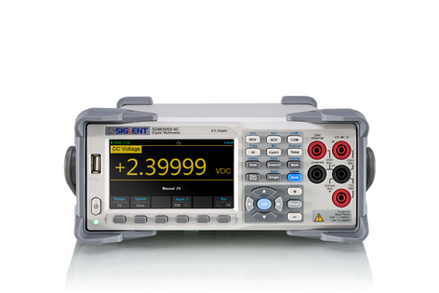

The SDM3055/SDM3055-SC is a digital multimeter designed with 5 ½ digits readings resolution and dual-display, especially fitting to the needs of high-precision, multifunction and automatic measurement.
Specifications
DC Voltage | 200 mV ,2 V,20 V,200 V,1000 V |
DC Current | 200 μA,2 mA,20 mA,200 mA,2 A,10 A |
AC Voltage | True-RMS,200 mV,2 V,20 V,200 V,750 V |
AC Current | True-RMS,20 mA,200 mA,2 A,10 A |
2/4-Wire Resistance | 200 Ω,2 kΩ,20 kΩ,200 kΩ,2 MΩ,10 MΩ,100 MΩ |
Capacitance | 2 nF,20 nF,200 nF,2 μF,20 μF,200 μF,1000 μF |
Continuity Test | Range is fxed at 2 kΩ |
Diode Test | Adjustable range is 0 ~ 4 V |
Frequency Measurement | 20 Hz~1 MHz |
Period Measurement | 1 μs~0.05 s |
Temperature | Support for TC and RTD sensor |
Math Function | Max, Min, Average, Standard Deviation,dBm/dB,Relative Measurement, Pass/Fail Histogram, TrendChat |
Display | 4.3” TFT-LCD, 480*272 display |
Reading Resolution | Real 5½ digits readings resolution ( 240,000 counts ) |
Size | 1 Gb Nand Flash |
Standard Interface | USB Device,USB Host,LAN |
Optional Interface | USB-GPIB |
Scanner Card SC1016 | Only for SDM3055-SC |
Model | Reading resolution | AC voltage measurement range | DC voltage measurement range | DC current measurement range | AC current | Scanner card |
|---|---|---|---|---|---|---|
SDM3055 | 5 1/2 | 200 mV ~ 750 V | 200 mV ~ 1000 V | 200 μA ~ 10 A | 20 mA ~ 10 A | Not Support |
SDM3055-SC | 5 1/2 | 200 mV ~ 750 V | 200 mV ~ 1000 V | 200 μA ~ 10 A | 20 mA ~ 10 A | Support |
