Main Features
Frequency Range: 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz
Range of IFBW: 1 Hz to 10 MHz
Dynamic Range: 135 dB
Setting Range of Output Level: -55 dBm to +10 dBm
Standard Bias-Tee connection and pulse hardware
4-port models include standard second source
Jumpers / DRA (Source, Ref and Meas) standard on SNA61xxA models

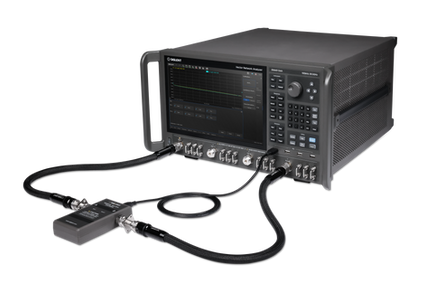

The SIGLENT SNA6000A series of Vector Network Analyzers have a frequency range of 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz, which support 2/4-port scattering parameter, differential-parameter, and timedomain parameter measurements. The SNA6000A series of VNAs are effective instrumentation for determining the Q-factor, bandwidth, and insertion loss of a filter, They feature impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation, and adapter removal/insertion adjustments. The VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode, and Segment-Sweep mode. The SNA6000A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response, and Enhanced Response for increased flexibility in R&D and manufacturing applications.
Specifications
Frequency range | 100kHz-13.5/26.5GHz |
Frequency resolution | 1Hz |
Level resolution | 0.05dB |
Range of IFBW | 1Hz~10MHz |
Setting range of output level | -55dBm ~ +10dBm |
Dynamic range | 135dB |
Types of calibration | Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration |
Support Bias-Tees | Yes |
Interface | LAN，USB Device，USB Host(USB-GPIB) |
Remote control | SCPI / Labview / IVI based on USB-TMC / VXI-11/ Socket / Telnet / Webserver |
Touch control | Multi Touch，Mouse，Keyboard |
Screen | 12.1-inch touch screen |
Video output | HDMI |
Types of measurement | Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis (TDR), spectrum analysis, frequency offset, scalar mixer measurement |
Model | Frequency range | Ports | Dynamic range | Trace noise | Range of output level | ID |
|---|---|---|---|---|---|---|
SNA6034A | 100 kHz to 26.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | 014d5430-91e7-4fcd-a692-f4dade354861 |
SNA6032A | 100 kHz to 26.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | 9495c489-cd80-4496-a10c-2a045c616569 |
SNA6024A | 100 kHz to 13.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | 54c4d0e8-9542-41f4-b37e-6486a1308f66 |
SNA6022A | 100 kHz to 13.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | 8020d8ac-93b5-42e4-b247-dbe31c2ef19f |
SNA6134A | 100 kHz to 26.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | 72d78759-f99c-4906-a202-e7097af1218a |
SNA6132A | 100 kHz to 26.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | 1532eda3-6835-41e4-9f7a-6edd1d3f4e1a |
SNA6124A | 100 kHz to 13.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | 7ca19aff-0230-4c6b-a24e-edfdc413b354 |
SNA6122A | 100 kHz to 13.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | 226a7ddf-1250-4083-a0b8-7464c95b04fc |
